The MARSHINE Double Speed Heavy Duty Electric Powered Cable Pulling Winch Machine is a powerful electric cable installation tool which was engineered for the high-efficiency and heavy load cable pulling operations. Designed with the dual-speed functionality, it allows users to switch between the high-speed and high-torque modes, optimizing the productivity across the different pulling conditions. Been built with the industrial-grade materials and a powerful electric motor, this winch is ideal for the long-distance underground or the overhead cable installations in the power transmission and other electric power projects.
Product Parameter

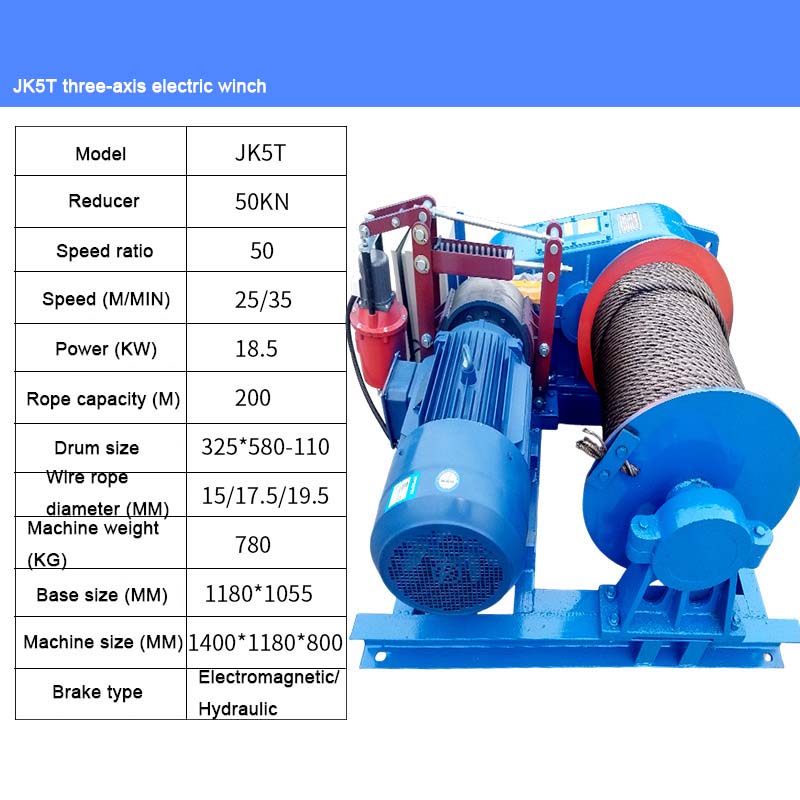

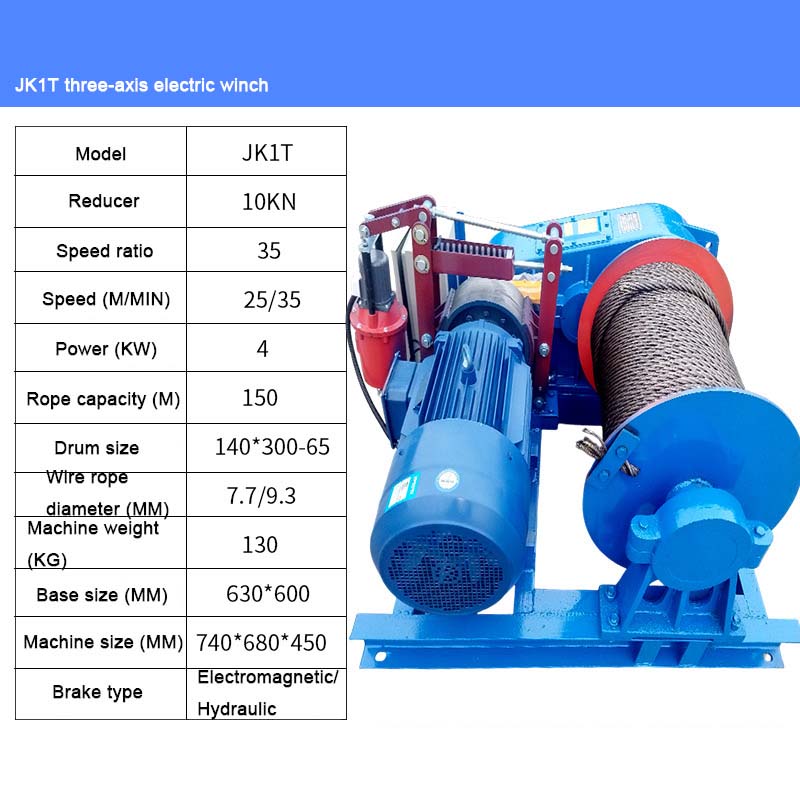

| Model | MAJK1T | MAJK2T | MAJK3T | MAJK5T |
| Reducer | 10KN | 20KN | 30KN | 50KN |
| Speed ratio | 35 | 40 | 40 | 50 |
| Speed (m/min) | 25/35 | 25/35 | 25/35 | 25/35 |
| Power (kw) | 4 | 11 | 15 | 18.5 |
| Rope capacity (m) | 150 | 150 | 200 | 200 |
| Drum size | 140*300-65 | 180*320-70 | 219*540-110 | 325*580-110 |
| Wire rope diameter (mm) | 7.7/9.3 | 11/12.5 | 13/15 | 15/17.5/19.5 |
| Machine weight (kg) | 130 | 280 | 450 | 780 |
| Base size (mm) | 630*600 | 830*740 | 1080*950 | 1180*1055 |
| Machine size (mm) | 740*680*450 | 980*980*550 | 1180*1080*600 | 1400*1180*800 |
| Brake type | Electromagnetic / Hydraulic | |||
Product Feature
With the switchable high-speed and low-speed gears, this MARSHINE Double Speed Heavy Duty Electric Powered Cable Pulling Winch Machine is able to offers the flexibility for both light and heavy duty cable pulling tasks with ease. And been equipped with the reinforced steel frame and the durable components, it can ensures the long service life under the tough job site conditions while reducing the maintenance costs. With the reliable braking and the overload protection systems for the safe operation, and the powerful electric motor to delivers the consistent pulling force, this machine can be a good choice for your teams.
Product Application
The MARSHINE Double Speed Heavy Duty Electric Powered Cable Pulling Winch Machine is suitable for the power transmission and the distribution cable installation, or the underground and the overhead cable pulling for utility networks, and can be used for the telecommunication and signal line deployment as well. Further more, it is can also be used to the large-scale industrial and the infrastructure cabling projects or the wind farm and the substation cable operations.
Product Details
The MARSHINE Double Speed Heavy Duty Electric Powered Cable Pulling Winch Machine is a top choice for the demanding cable pulling applications that requires the power, control, and efficiency.
Place Of Origin: Ningbo,China.
Lead Time:35-40days.
Certifications:ISO9001,CE.
Warranty:1year.
